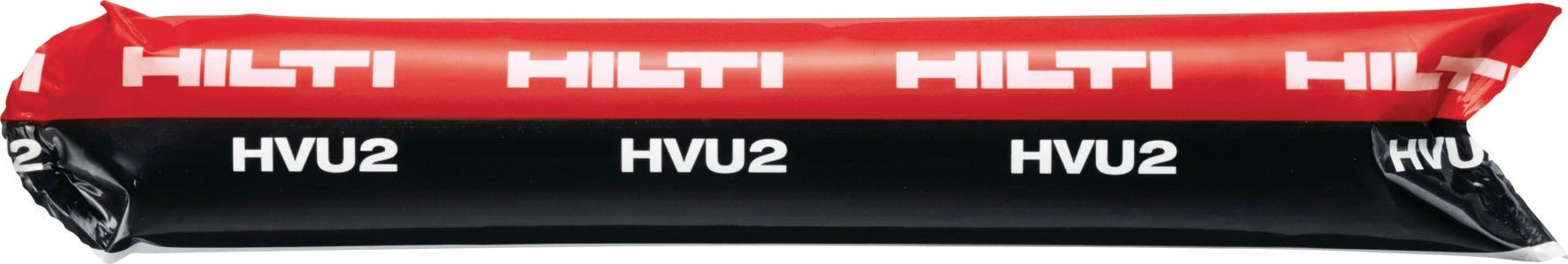

HVU-2 Lim kapsler - 3/8x3 1/2 (10mm x 90mm) – 20 pakke

Stærke HVU-2 lim kapsler - Perfekt til 3/8x3 1/2” anchors (20 pakke).

"Dyk ned i en verden af skønhed og tidløs elegance med vores unikke håndværk. Skabt med kærlighed og en passion for det fine – hver eneste detalje er en hyldest til kvalitet og nordisk design. Føl dig som en dronning, når du omgiver dig med dette mesterværk."

kr737.87 kr1475.67

Antal:

Beskrivelse

Features

Pack of 20
Suitable for cracked concrete and in seismic conditions – even in diamond cored holes included in ESR-4372 for sizes 1/2' to 1 1/4'
Soft foil capsules are much tougher and more resilient than glass capsules – little to no risk of breakage
Can be installed using impact drivers, drill drivers and hammer drills
Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
High performance in seismic and static conditions in cracked and uncracked concrete

Applications

Anchoring steel structures (e.g. racking, guard rails, fences and gates)
Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
Anchoring applications requiring seismic qualification
Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)

Technical Data

Anchoring elements: HIS-N internally threaded rods
Approvals / Test reports: ICC-ES report (concrete), Seismic
IBC compliance: IBC 2015, IBC 2018
PROFIS Software: Yes
Tested/approved for diamond drilling: Yes
In-service temperature – range: -40 - 120 °C
Storage and transportation temperature range: 5 - 25 °C
Seismic loading: Yes
Installation direction: All
Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning
Product Class: Ultimate
