Produktdetaljer

The Am’D asymmetrical aluminum carabiner has a D shape best suited for connecting a belay system or for holding gear. The ergonomic shape and Keylock system make it easy to handle, even when wearing gloves. The Am’D carabiner is available in three locking system versions: manual SCREW-LOCK system, or automatic BALL-LOCK and TWIST-LOCK systems.

Features

• D shape is particularly suited for connection to equipment such as descenders or positioning lanyards

• Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry

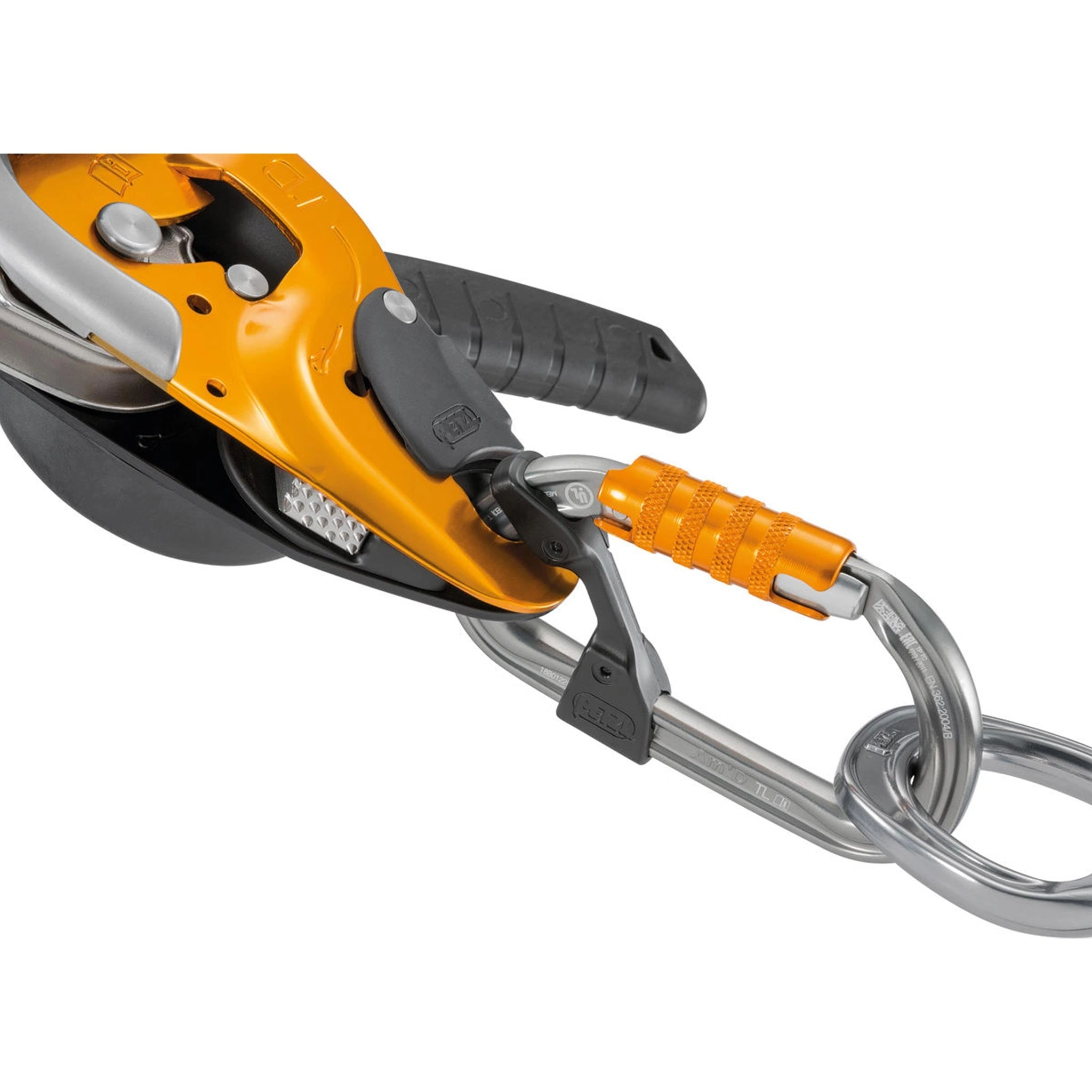

• May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device

• Easier handling:
  - fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  - Keylock system to avoid any involuntary snagging of the carabiner

• H-shaped cross-section:
  - ensures an improved strength-to-weight ratio
  - protects markings from abrasion

• Available in three different locking systems:
  - TRIACT-LOCK: automatic locking with triple-action gate opening
  - BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator
  - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

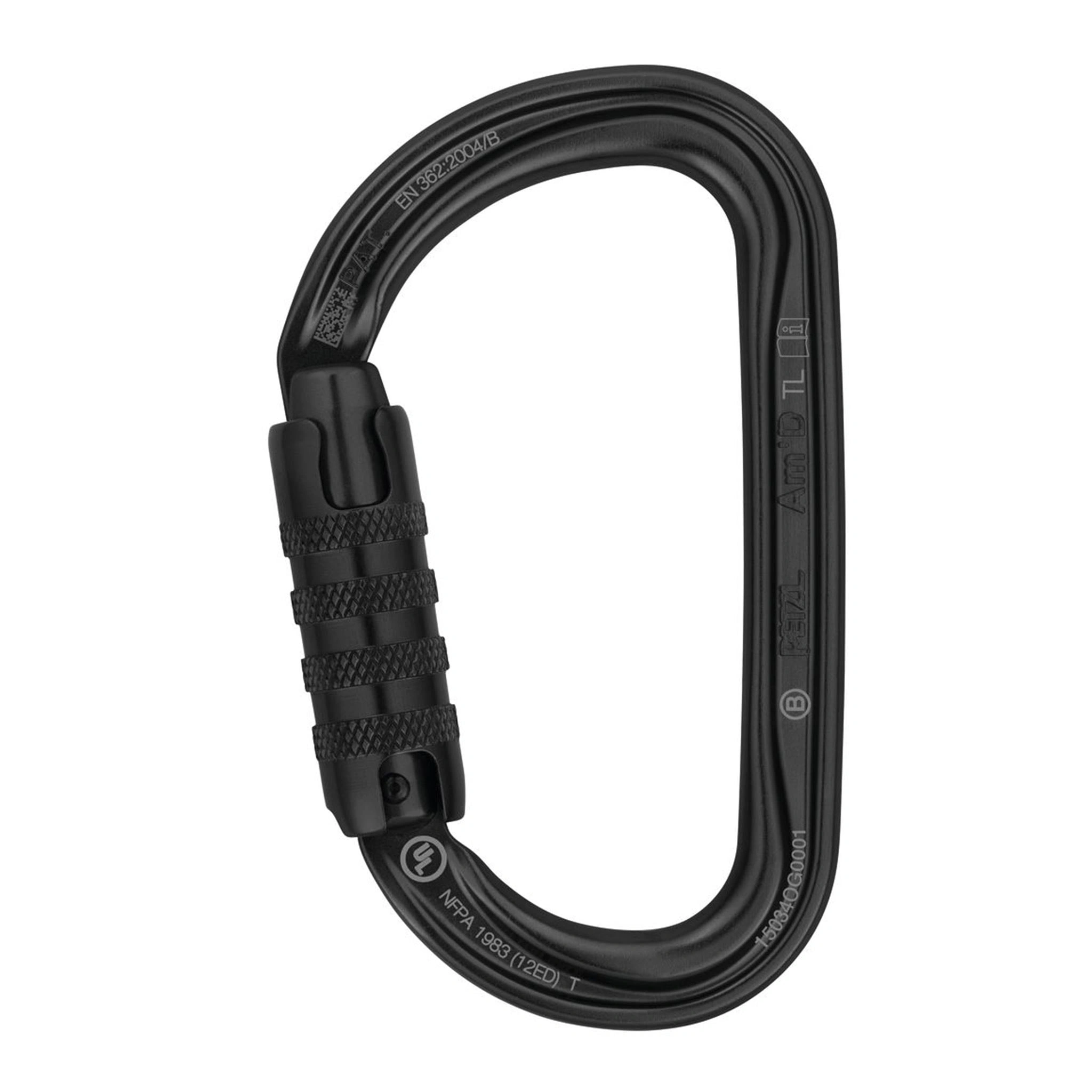

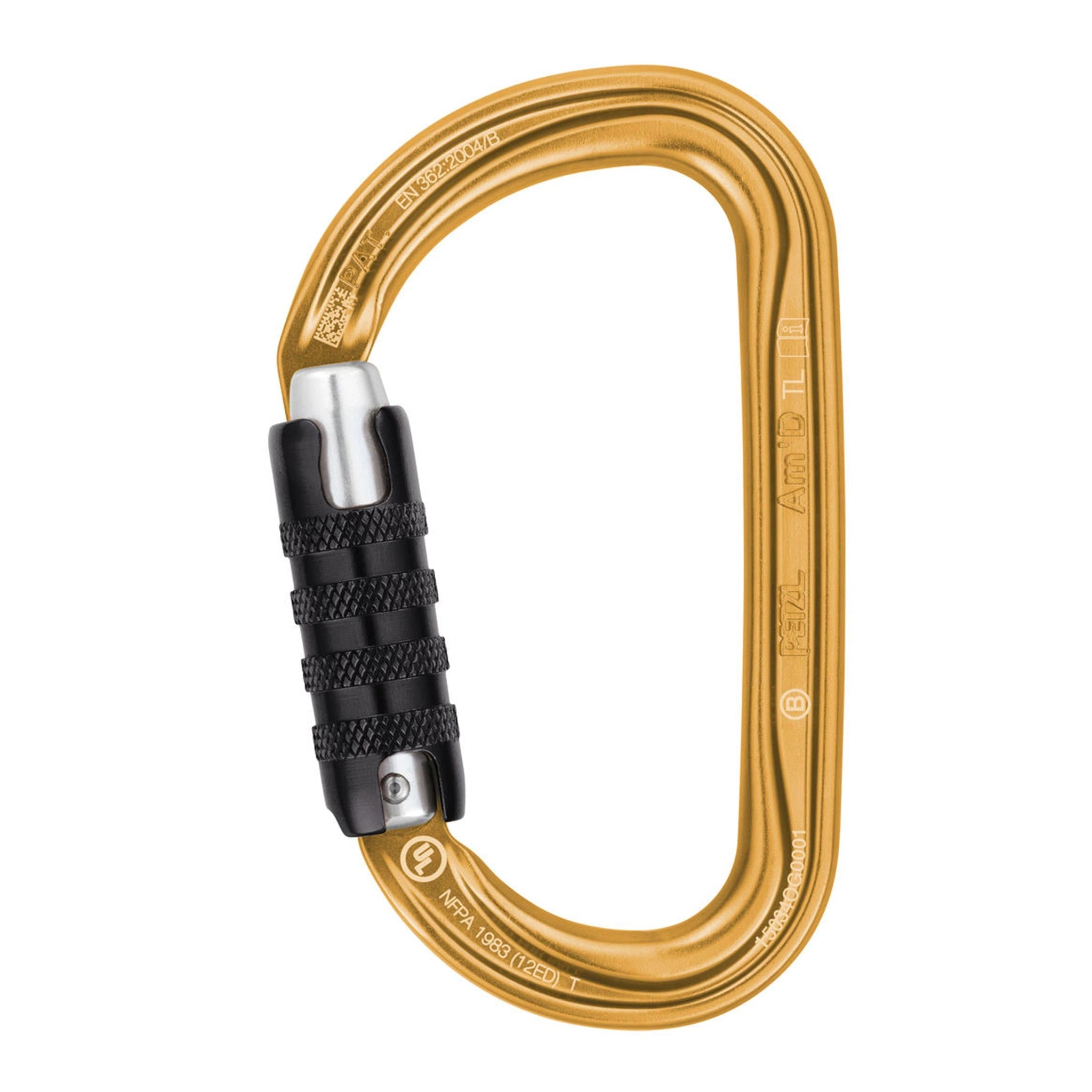

• Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)

Specifications

• Material(s): Aluminum

• Certification(s): CE EN 12275, UIAA, CE EN 362, EAC, NFPA 2500 Technical Use, XF 949 : FZL-G-Q, GB/T 23469 / B
• Weight: 75 g
• Locking system: BALL-LOCK
• Type: B
• Major axis strength: 27 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN

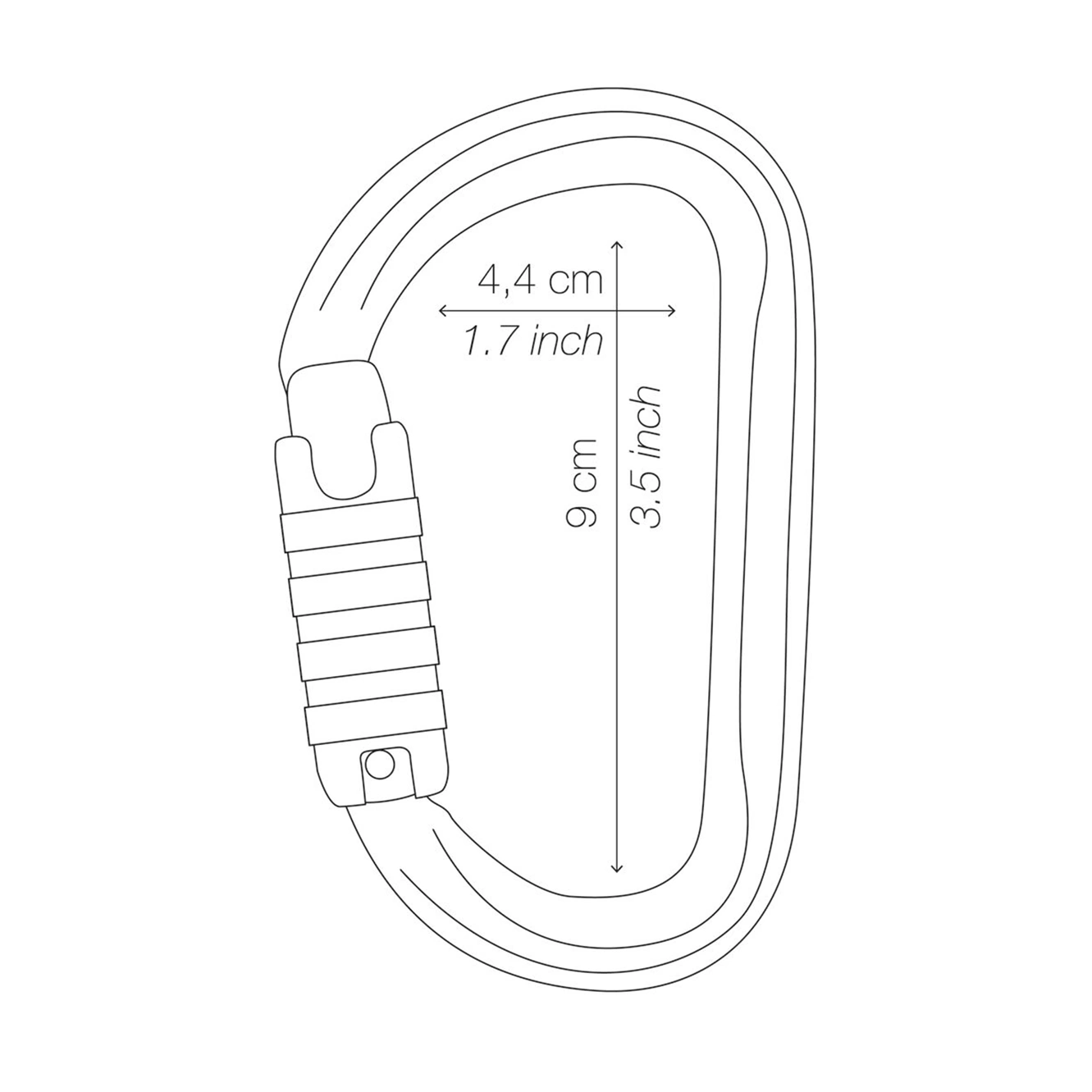

• Gate opening: 24 mm
